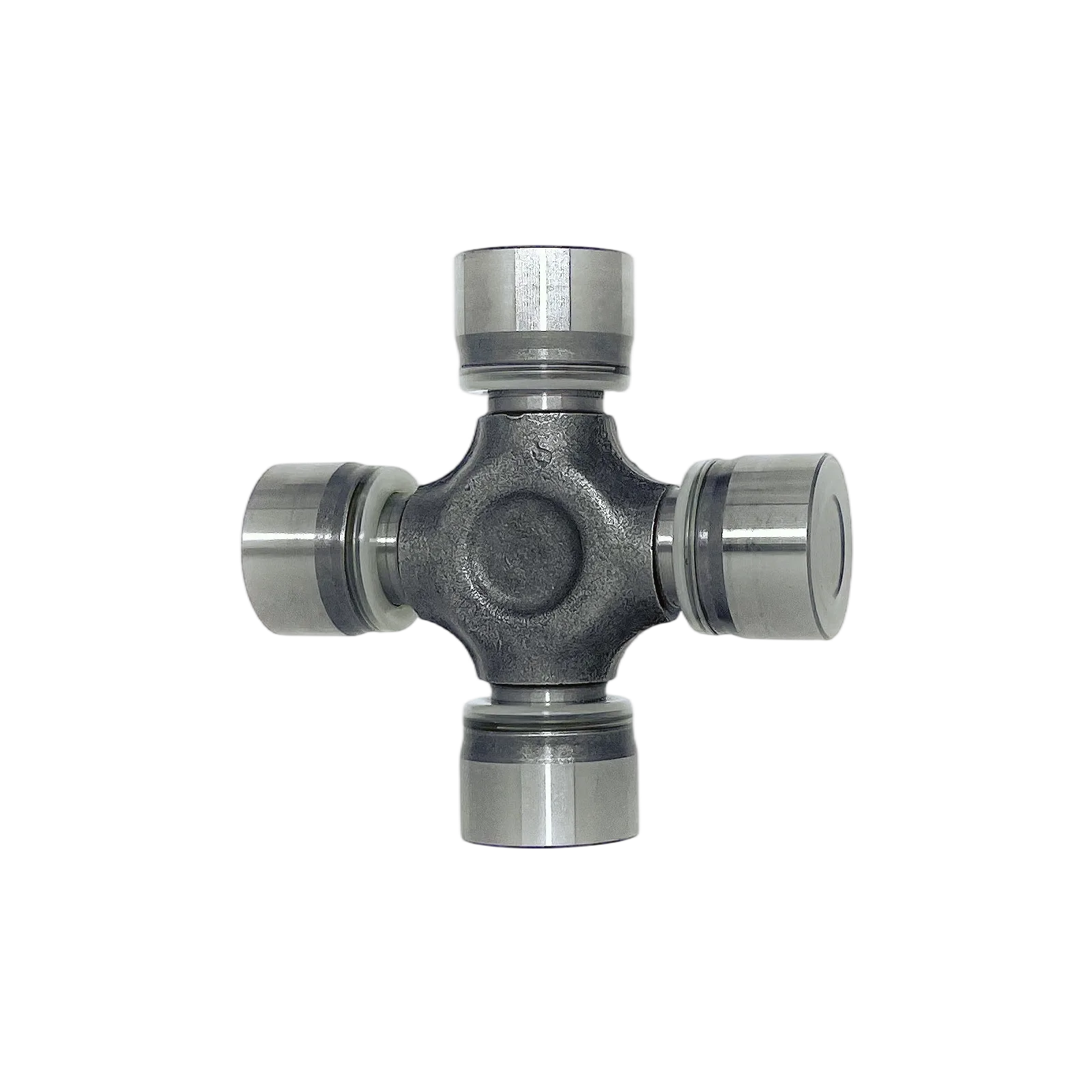

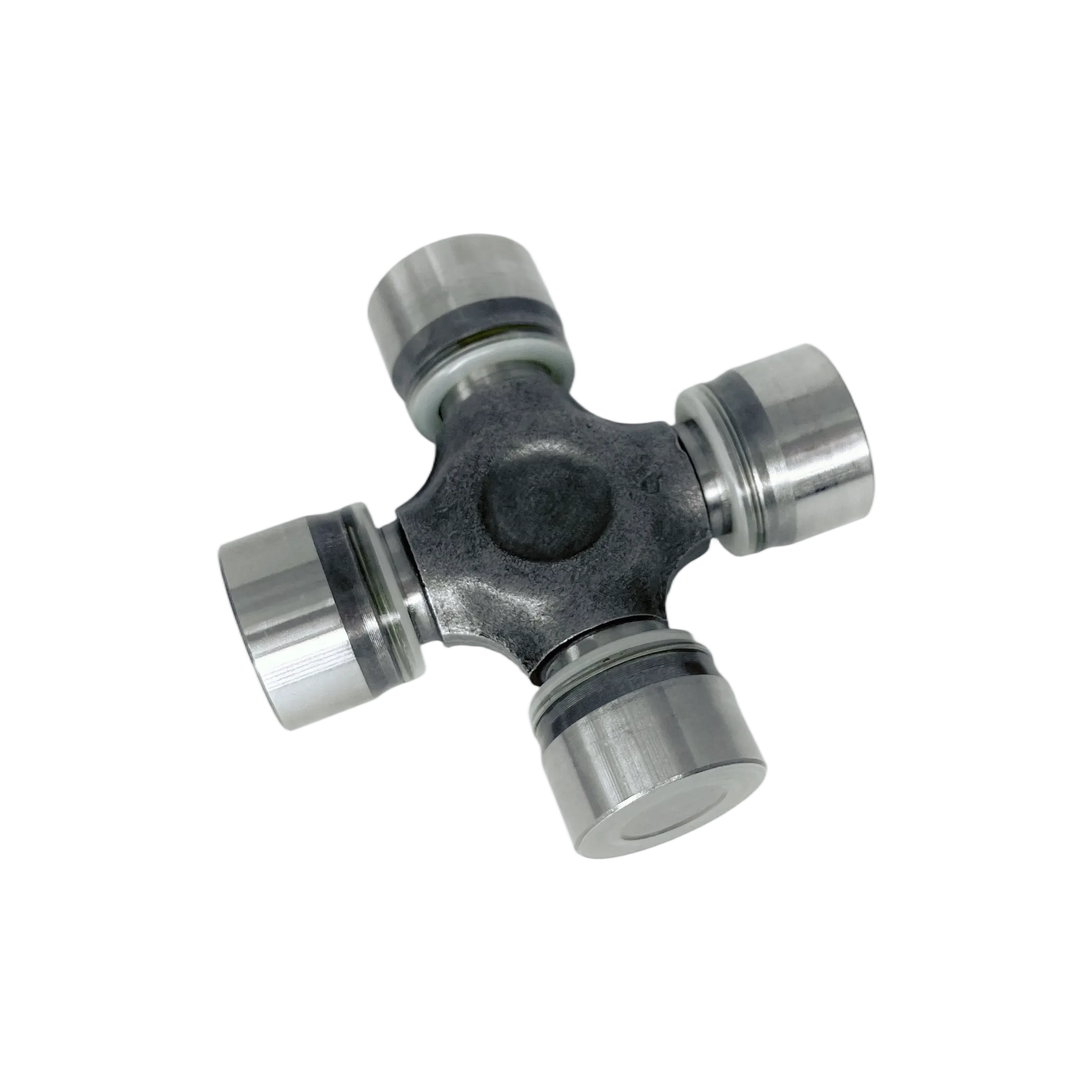

UJ231 Universal Joint

Home

>

Universal Joints

>

UJ231 Universal Joint

Spicer 5-1350X

GMB G5-447X

Neapco 2-0053BF

As the core hub of the power transmission system, the universal joint is designed to efficiently and smoothly transmit torque and motion while compensating for angular and positional variations between connected components. Our universal joints are precisely engineered and manufactured to ensure outstanding strength, wear resistance, and durability, even under the most demanding working conditions.Whether in traditional vehicles, construction machinery, or industrial equipment, they serve as the key to reliable power transmission and smooth, uninterrupted operation.

Part Specifications

U-JOINT SPECIFICATIONS
Dimension Size(mm)	Φ30.188*92.07
Dimension Size(in)	Φ1.19*3.62
Bearing Cap Type	4 Plain round bearings
Greaseable	NO
Material	20Cr/20CrMnTi
Hardness	HRC 58-64

Part Interchanges

Brand	Part Number
Spicer	5-1350X、5-282X、5-447X、5-471X、DT447
Neapco	2-0053BF、20053G
GMB	210-0447、G5-447X、114578B、20053BF
FORD	C1TZ3249A、E0TZ3249A、E7TZ-4635-D
ACDelco	45U0123、45U0109
Nissan	371251PE0
Autopar	20053BF、2100447、2154178、371251PE0A、5282X、5471X、94772179、Archived G5447X

Fits Vehicles

Brand	Model
Toyota	Tacoma (2020-2022)、Sequoia (2008-2019)、Tundra (2007-2016)
Dodge	Ram 5500 (2008-2010)、Ram 4500 (2008-2010)、Ram 1500 (2005-2006, 2009-2010)、W200 Series (1961-1967)、W200 Pickup (1968-1971)、Viper (1992-2006, 2008, 2015-2017)、Ram 3500 (2003-2010)、Ram 2500 (2003-2010)
Chevrolet	Silverado 2500 HD (2018-2019)、Silverado 3500 HD (2017-2019)、Silverado 1500 HD Classic (2007)、Silverado 1500 Classic (2007)、C3500HD (1997-2000)、Tahoe (2014-2019)、Suburban (1961-1966, 2015-2017, 2019)、C5500 Kodiak (2005-2009)、C4500 Kodiak (2005-2009)、P30 Van (1968-1974)、P20 Series (1960-1966)、K20 Pickup (1961-1974)、C30 Pickup (1968-1974)、C20 Pickup (1967-1974)、C10 Pickup (1960-1974)、V3500 (1989-1991)、V30 (1987-1988)、V2500 Suburban (1989-1991)、V20 Suburban (1987-1988)、V20 (1987)、V10 Suburban (1987-1988)、V10 (1987)、R3500 (1989-1991)、R30 (1987-1988)、R2500 Suburban (1989-1991)、R2500 (1989)、R20 Suburban (1987-1988)、R20 (1987-1988)、P20 (1975-1989)、P10 (1975-1980)、K3500 (1988-2000)、K30 (1977-1986)、K2500 Suburban (1992-1999)、K2500 (1988-2000)、K20 Suburban (1968-1986)、K20 (1975-1986)、K1500 Suburban (1997-1999)、K1500 (1988-1998)、K10 Suburban (1978, 1982-1986)、K10 (1978, 1982-1986)、G30 (1975-1996)、G20 (1976-1981, 1984)、G10 (1978-1984)、Express 3500 (1996-2010)、Express 2500 (1996-2010)、Express 1500 (1996-2014)、Corvette (1963-1982)、Caprice (1982-1984)、Camaro (1982-1984)、C3500 (1988-2000)、C30 (1975-1986)、C2500 Suburban (1992-1999)、C2500 (1988-2000)、C20 Suburban (1967-1986)、C20 (1975-1986)、C1500 Suburban (1994-1999)、C1500 (1988-1991, 1993-1996)、C10 Suburban (1968-1986)、C10 (1975-1986)、K5 Blazer (1982-1986)、Blazer (1969-1974, 1987-1991, 1995-2005)、Astro (1985-2002)、Monte Carlo (1982-1984)、Malibu (1982-1983)、Impala (1982-1984)
GMC	Sierra 2500 HD (2018-2019)、Sierra 3500 HD (2017-2019)、Sierra 1500 HD Classic (2007)、Sierra 1500 Classic (2007)、Yukon XL (2015-2017, 2019)、Yukon (2015-2019)、C25/C2500 Suburban (1967)、C5500 Topkick (2005-2009)、C4500 Topkick (2005-2009)、Suburban (1961-1966)、K15/K1500 Suburban (1967)、I1500 (1965)、P35/P3500 Van (1968-1974)、K25/K2500 Suburban (1967-1974)、K25/K2500 Pickup (1967-1974)、K15/K1500 Pickup (1966)、G1000 Series (1964-1966)、C35/C3500 Pickup (1967-1974)、C25/C2500 Pickup (1973-1974)、C15/C1500 Suburban (1967-1970, 1974)、C15/C1500 Pickup (1967-1974)、1500 Series (1961, 1963-1965)、1000 Series (1961-1965)、Yukon XL 2500 (2000-2006)、Yukon XL 1500 (2000, 2014)、V3500 (1987-1991)、V2500 Suburban (1987-1991)、V2500 (1987)、V1500 Suburban (1987-1991)、V1500 (1987)、Sierra 2500 (1999-2004)、Sierra 1500 HD (2001-2003, 2005-2006)、Sierra 1500 (2002-2006, 2014-2018)、Safari (1985-2002)、R3500 (1987-1991)、R2500 Suburban (1987-1991)、R2500 (1987-1989)、P3500 (1979-1999)、P35 (1975-1978)、P2500 (1979-1989)、P25 (1975-1978)、P1500 (1979-1980)、P15 (1975-1978)、K3500 (1979-1986, 1988-2000)、K35 (1977-1978)、K2500 Suburban (1979-1986, 1992-1999)、K25 Suburban (1975-1978)、K2500 (1979-1986, 1988-2000)、K25 (1975-1978)、K1500 Suburban (1982-1986, 1997-1999)、K15 Suburban (1978)、K1500 (1982-1986, 1988-1998)、K15 (1978)、Jimmy (1975-1991, 1995-2001)、Savana 3500 (1996-2010)、G3500 (1979-1995)、G35 (1975-1978)、Savana 2500 (1996-2010)、G2500 (1979-1981, 1984)、G25 (1976-1978)、Savana 1500 (1996-2014)、G1500 (1979-1984)、G15 (1978)、C3500 (1979-1986, 1988-2000)、C35 (1975-1978)、C2500 Suburban (1979-1986, 1992-1999)、C25 Suburban (1975-1978)、C2500 (1979-1986, 1988-2000)、C25 (1975-1978)、C1500 Suburban (1979-1986, 1994, 1996-1999)、C15 Suburban (1975-1978)、C15 (1975-1978)、C1500 (1979-1986, 1988-1991, 1993-1996)
Ford	F-250 HD (1997)、F-100 (1967-1969)、F-150 Heritage (2004)、F-150 (1997-2020)、F-250 Super Duty (1999-2016)、F-250 (1973-1999)、F-350 Super Duty (1999-2016)、F-350 (1968-1985, 1987-1997)、F-450 Super Duty (1999-2016)、F-550 Super Duty (1999-2016)、E-150 (2003-2014)、E-150 Econoline (1997-2002)、E-150 Econoline Club Wagon (1997-2002)、E-150 Club Wagon (2003-2005)、E-250 (2003-2014)、E-250 Econoline (1979, 1997-2002)、E-250 Econoline Club Wagon (1979)、E-350 Econoline (1979, 1993-1998)、E-350 Econoline Club Wagon (1979, 1993-2002)、E-350 Club Wagon (2003-2004)、E-350 Super Duty (1999-2016, 2021-2022)、E-450 Econoline Super Duty (2002)、E-450 Super Duty (2003-2004)、Econoline Super Duty (1999)、Transit-150 (2015-2019)、Transit-250 (2015-2019)、Transit-350 (2015-2019)、Expedition (1997-2021)、Excursion (2000-2005)、Explorer (2006-2010)、Mustang (2001, 2003-2004, 2013-2022)、Crown Victoria (2003-2011)、E-300 Econoline (1969-1974)
Nissan	NV3500 (2013-2019)、NV2500 (2013-2019)、NV1500 (2012-2019)、Pathfinder (2009-2011)、Armada (2005-2015)、TITAN (2004-2006)
SRT	Viper (2013-2014)
Cadillac	Escalade ESV (2015-2017)、Escalade (2015-2018)、DeVille (1982-1984)
Lincoln	Mark LT (2006-2008)、Town Car (2005-2011)、Navigator (1998-2021)、Blackwood (2002)
INFINITI	QX56 (2004-2006)
Rolls-Royce	Phantom (1959-1968)、Silver Wraith (1947-1957)、Silver Dawn (1947-1954)、Silver Cloud (1955-1965)、Corniche (1971-1975)、Silver Shadow (1966-1975)、Camargue (1975)
Oldsmobile	Starfire (1966)、Vista Cruiser (1966-1967)、Jetstar 88 (1966)、F85 (1966-1967)、Delmont 88 (1967)、Cutlass (1966-1967)、442 (1966-1967)、Delta 88 (1966-1967, 1982-1984)、Cutlass Supreme (1967, 1982-1984)、Cutlass Cruiser (1982-1983)、Cutlass Calais (1982-1984)、98 (1966-1967, 1982-1984)
Mercury	Mountaineer (2006-2010)、Marauder (2003-2004)、Grand Marquis (2003-2011)
Pontiac	Parisienne (1982-1984)、Grand Prix (1982-1984)、Firebird (1982-1984)、Bonneville (1982-1984)
Buick	Regal (1982-1987)、Estate Wagon (1982-1983)、LeSabre (1982-1985)、Electra (1982-1984)
Fargo	W200 Pickup (1966-1971)

Service

Delivery	45 days
Packing	Neutral packing/Custom packing/Liqun packing
Warranty	2 years

Precision Customization, We Deliver What We Promise

Just share your drawings and specifications with us — we’ll bring them to life with precision. Every universal joint is produced exactly to your requirements, ensuring stable performance and dependable quality.

Tough and Durable, Built to Last

We use high-grade alloy steel as the base material, with core cross shafts treated through advanced carburizing processes. This gives our products exceptional wear resistance, fatigue strength, and long service life — ready to perform under even the harshest conditions.

Fast Delivery, No Delays

With an efficient supply chain and optimized production management, we respond quickly to every order, ensuring on-time delivery and helping you stay ahead in the market.

Flexible Cooperation, Supporting Innovation

Whether you’re in the prototyping stage or require large-scale production, we adapt to your needs seamlessly. We’re also eager to support custom product development and performance upgrades based on your existing designs.

Competitive Pricing, Greater Value in Volume

Through large-scale production and continuous process optimization, we maintain top quality while keeping costs low — offering highly competitive prices, especially for bulk orders that deliver the best value for your business.

To ensure the long-term durability and stable performance of the universal joint, regular inspection and maintenance are essential. We recommend the following: 

Regular Lubrication:

Follow the product specifications strictly and use high-quality grease of the designated grade for periodic lubrication. Proper lubrication effectively reduces internal wear, lowers operating temperature, and extends service life.

Routine Inspection:

Regularly check for oil leakage, abnormal noise, radial runout, or unusual vibration. Inspect the spline section for signs of rust or dust accumulation, and clean it promptly if necessary.

Cleaning and Protection:

Keep the universal joint clean at all times. Under harsh operating conditions, remove mud, gravel, or other debris attached to the surface to prevent contamination or damage to the seals.

Our universal joints are manufactured with advanced precision processes to meet the highest quality standards: 

Precision Forging:

The main components are forged from high-quality alloy steel to ensure continuous metal flow lines and dense microstructure, providing superior base strength and fatigue life.

Heat Treatment:

Core components, such as the cross shaft, undergo advanced heat treatment processes including carburizing, quenching, and tempering. This achieves a high surface hardness for wear resistance while maintaining a tough and ductile core to withstand impact loads.

Precision Grinding and Dynamic Balancing:

Key mating surfaces, such as bearing journals, are ground with high precision to ensure dimensional accuracy and proper fit clearance. After assembly, each unit undergoes rigorous dynamic balance testing to guarantee smooth high-speed operation with minimal vibration and noise.

To prevent damage caused by improper use, please observe the following precautions:

Avoid Overloading:

Do not operate beyond the rated torque or speed of the product. Overloading can dramatically shorten service life and may result in sudden fracture.

Proper Installation:

Ensure correct alignment between the connected components during installation. Avoid excessive force or hammering. Tighten all bolts to the specified torque and always use new locking components such as cotter pins.

Regular Replacement:

As a wear component, the universal joint should be inspected periodically according to the equipment maintenance schedule. If noticeable clearance, abnormal noise, or stiffness occurs, stop operation immediately and replace the unit to prevent secondary damage.

UJ231 Universal Joint

UJ344 Universal Joint

UJ391 Universal Joint

Faq

Do you support prototyping and small-batch production for new projects?

Absolutely. We are glad to support customers in new product development. We offer flexible small-batch customization services for sample validation, testing, and pilot production — ensuring a smooth transition from design to mass production.

What is your production process if we provide our own design drawings?

Once we receive your drawings, our technical team will quickly evaluate them and provide a feasibility analysis along with a quotation. Upon order confirmation, we will manufacture strictly according to your specifications and keep you updated at key production stages to ensure the final product fully meets your design requirements.

What is your minimum order quantity (MOQ)?

As an OEM manufacturer, we are highly flexible and have no strict MOQ requirement. We understand that each project has different needs — from small quantities for prototype testing to large-scale production orders — and we can adjust accordingly to support your specific requirements.

Do bulk orders come with price or lead-time advantages?

Yes, that’s one of our key strengths. Through large-scale production and optimized scheduling, bulk orders benefit from more competitive unit prices and faster, more stable delivery timelines.

Can you help improve or redesign our existing products?

Yes, we can. We are not only a manufacturer but also your technical partner. With years of expertise in universal joint engineering, we can provide material, process, or structural optimization suggestions to enhance performance, extend service life, or reduce costs.

If you have more specific questions, please feel free to contact us — our team will be happy to provide a tailored solution for your needs.
